Integrated passenger Information System
Integrated passenger Information System

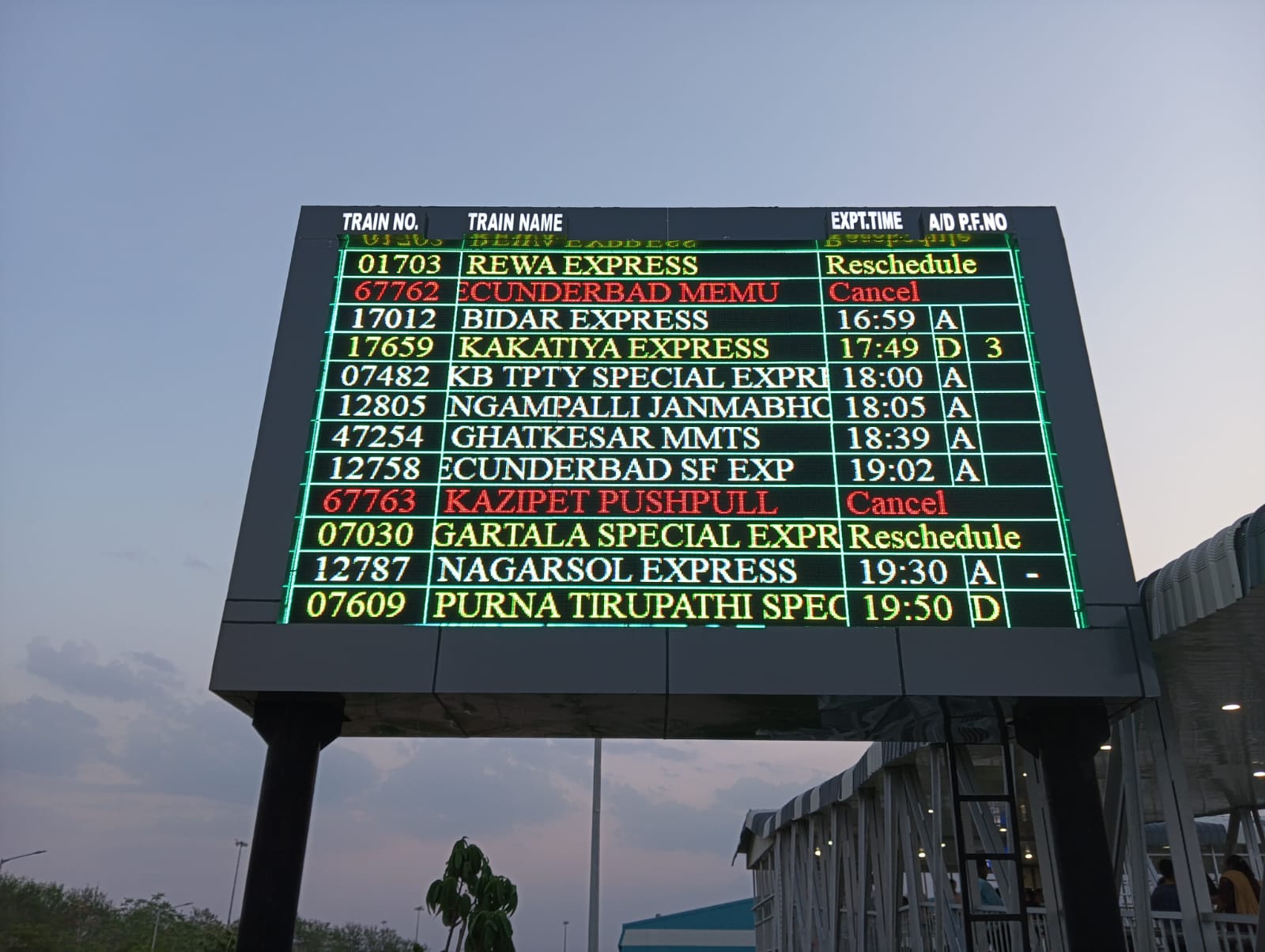

The Integrated Passenger Information System (IPIS) is a computer based single control and data entry system providing audio and visual information to passengers through multiple LED boards i.e. Single Line, Multiline, At a glance & coach guidance display spanning over the entire station with the feature of networking and operation from a centralized location according to specification number RDSO/SPN/TC/61/2015 Rev 04.
RDSO Specification: RDSO/SPN/TC/61/2015
Approved by RDSO (Research Designs & Standards organization), Ministry of Railways,Govt. of India
Includes:
- Redundant control console system loaded with Application software.
- LED Display boards of different sizes and serial communication HUBs.
- CCTV.
- PC based Announcement system.
Features of control console unit:
- Dissemination of data with single button click.
- Provision to update data from remote server which is maintaining actual train arrival/departure timings and predictions.
- Reports for disseminated data for future analysis.
- Voice play back and voice recording facility.
- UNICODE standard for data entry of all the languages.
- Intensity control of display boards with user time settings from application software.
- Overall system communication health status indication in application software.
Features of display boards :
- Multi Lingual Display.
- LEDs with more viewing angle and life time.
- Dust proof, weather proof, and water proof systems as per protection class IP 54.
- Can be realized in different dimensions, character heights and brightness that are customized in accordance to the place of installation, in order for optimal readability.

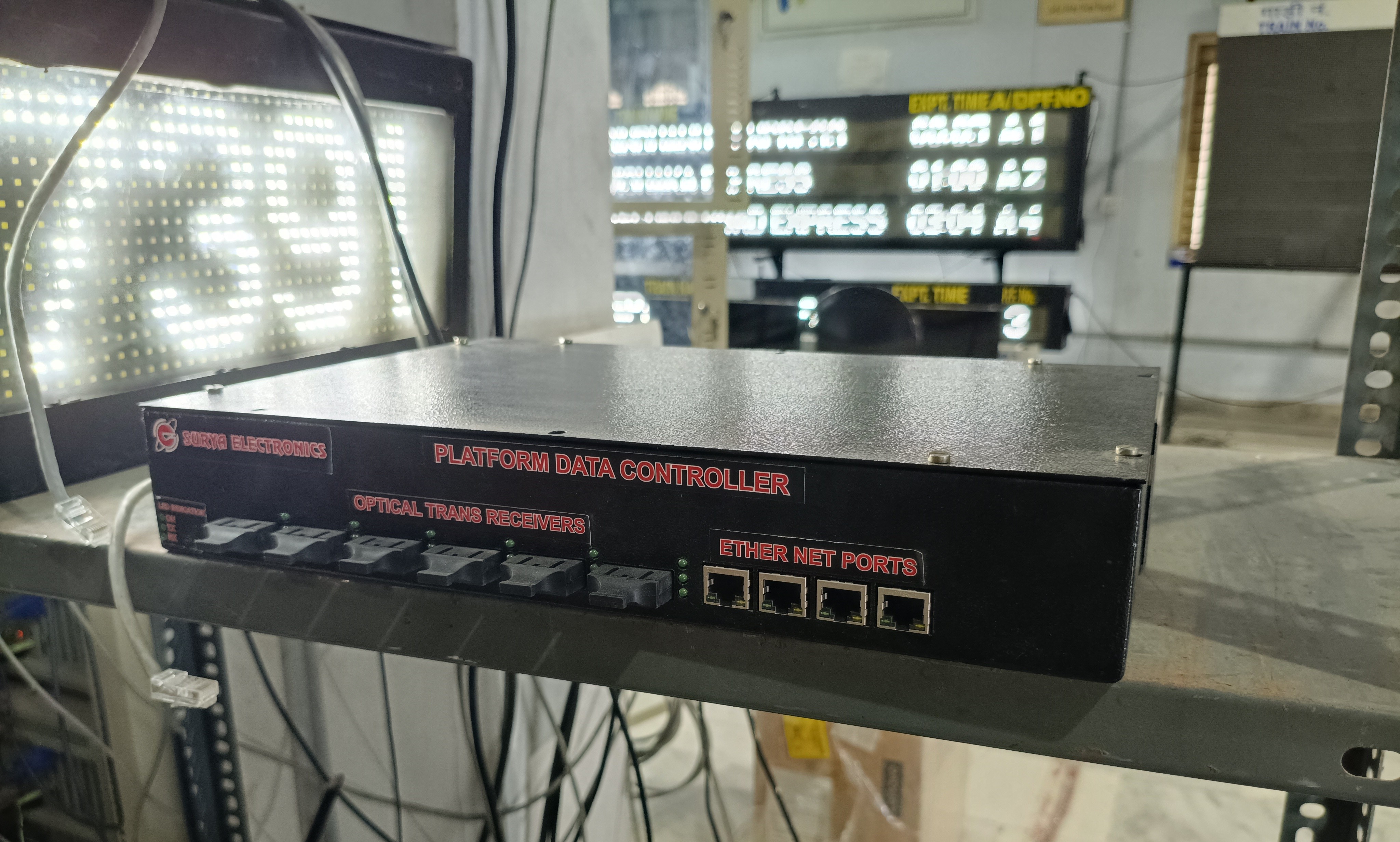

Serial HUBs :
- Routing of data to respective destinations.
- Communication health indications on front panel of serial HUBs.
- Diagnostic routines to indicate faulty ports in serial HUBs.
- Can be configurable to work either as Main HUB or Platform HUB.
Serial HUBs :
- Routing of data to respective destinations.
- Communication health indications on front panel of serial HUBs.
- Diagnostic routines to indicate faulty ports in serial HUBs.
- Can be configurable to work either as Main HUB or Platform HUB.
Other features :
- CCTV displays train information in different languages.
- PC based Voice announcement system in different languages which incorporates following functions:
- Automatic Train Arrival and Departure announcement to passengers.
- Special announcements.
- Provision to display Train Arrival/Departure Information or Cable TV or both (in overlay mode with passenger information as scrolling text on Video or Cable TV).
- Networking of IPIS applications in local stations for centralized operation.

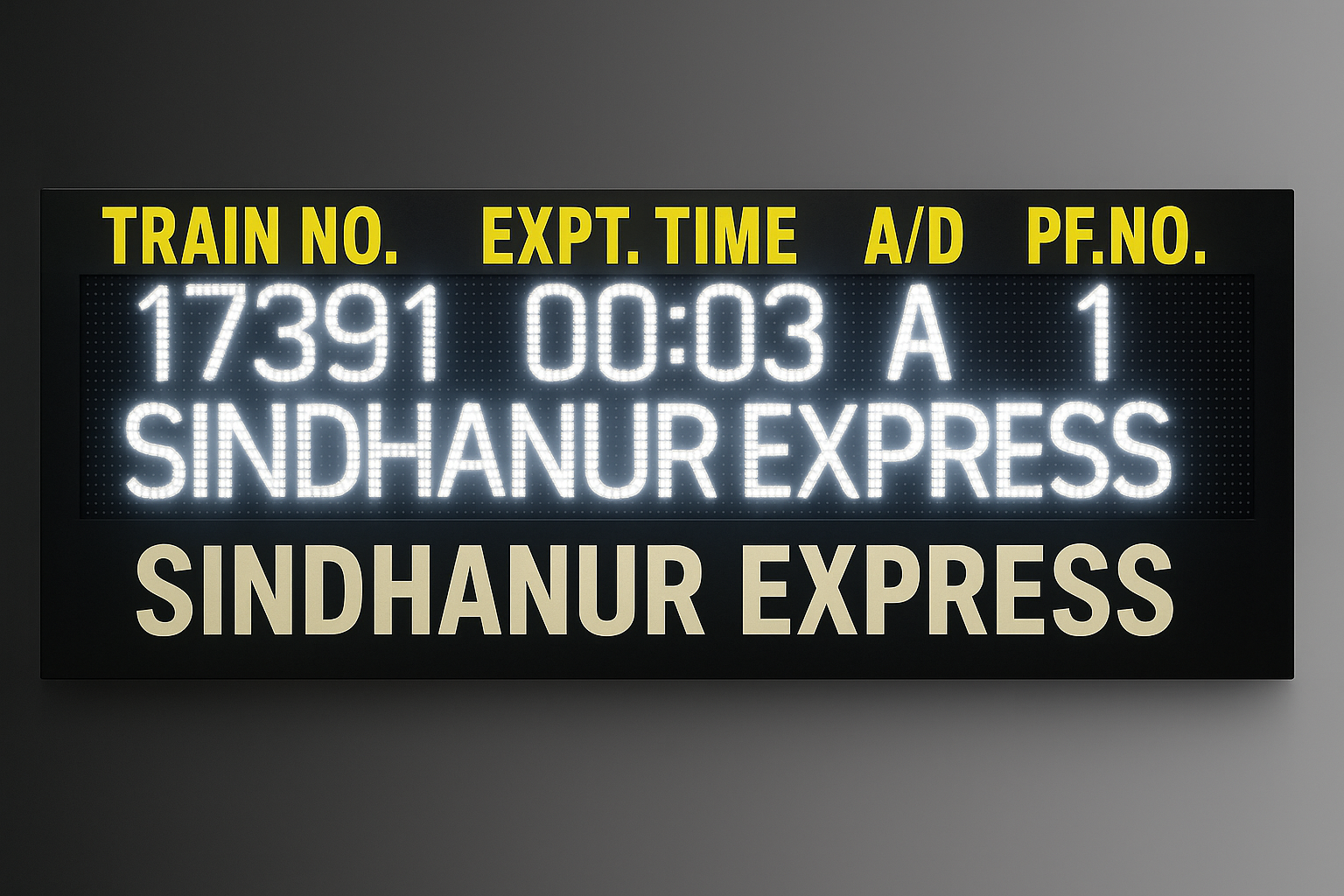

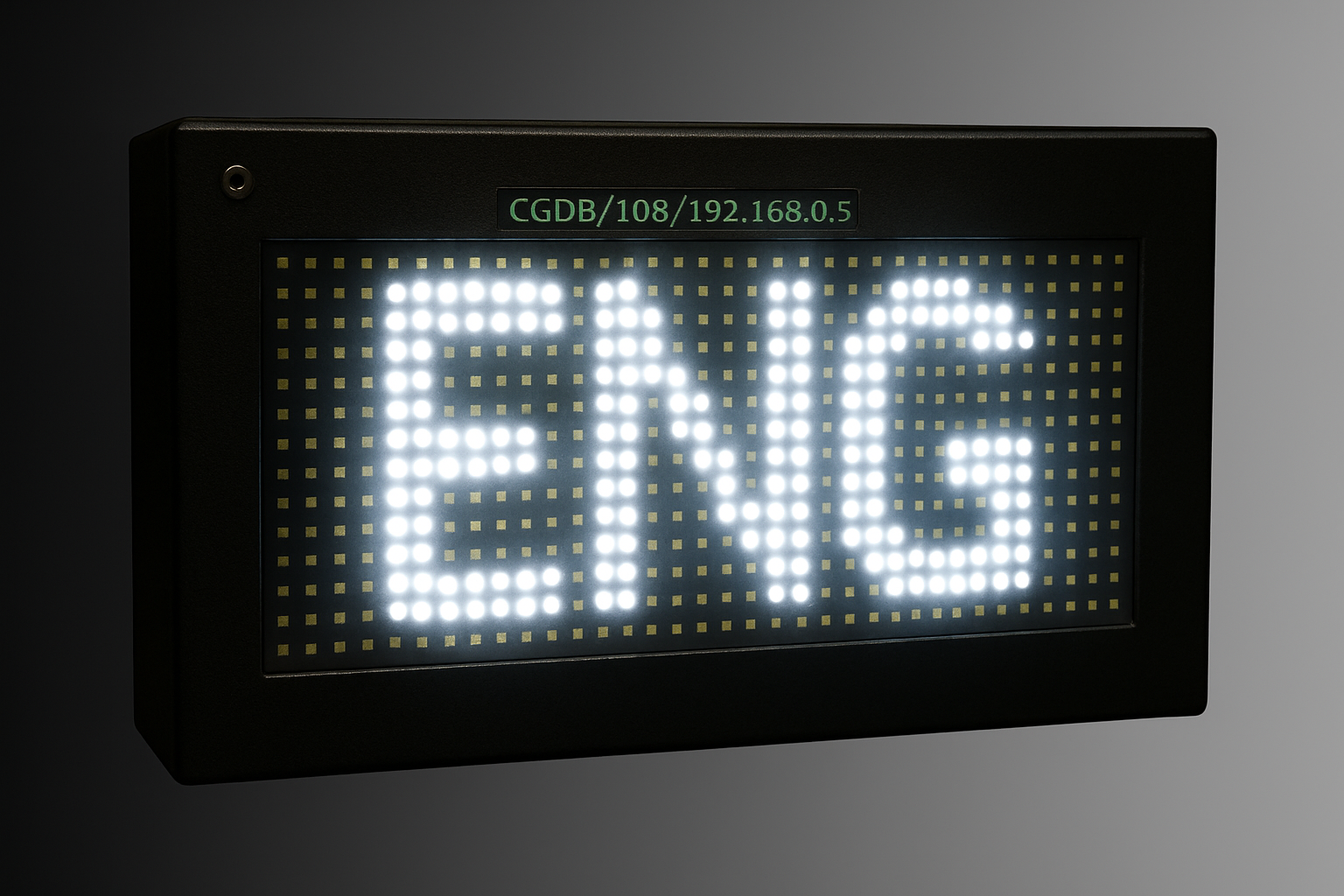

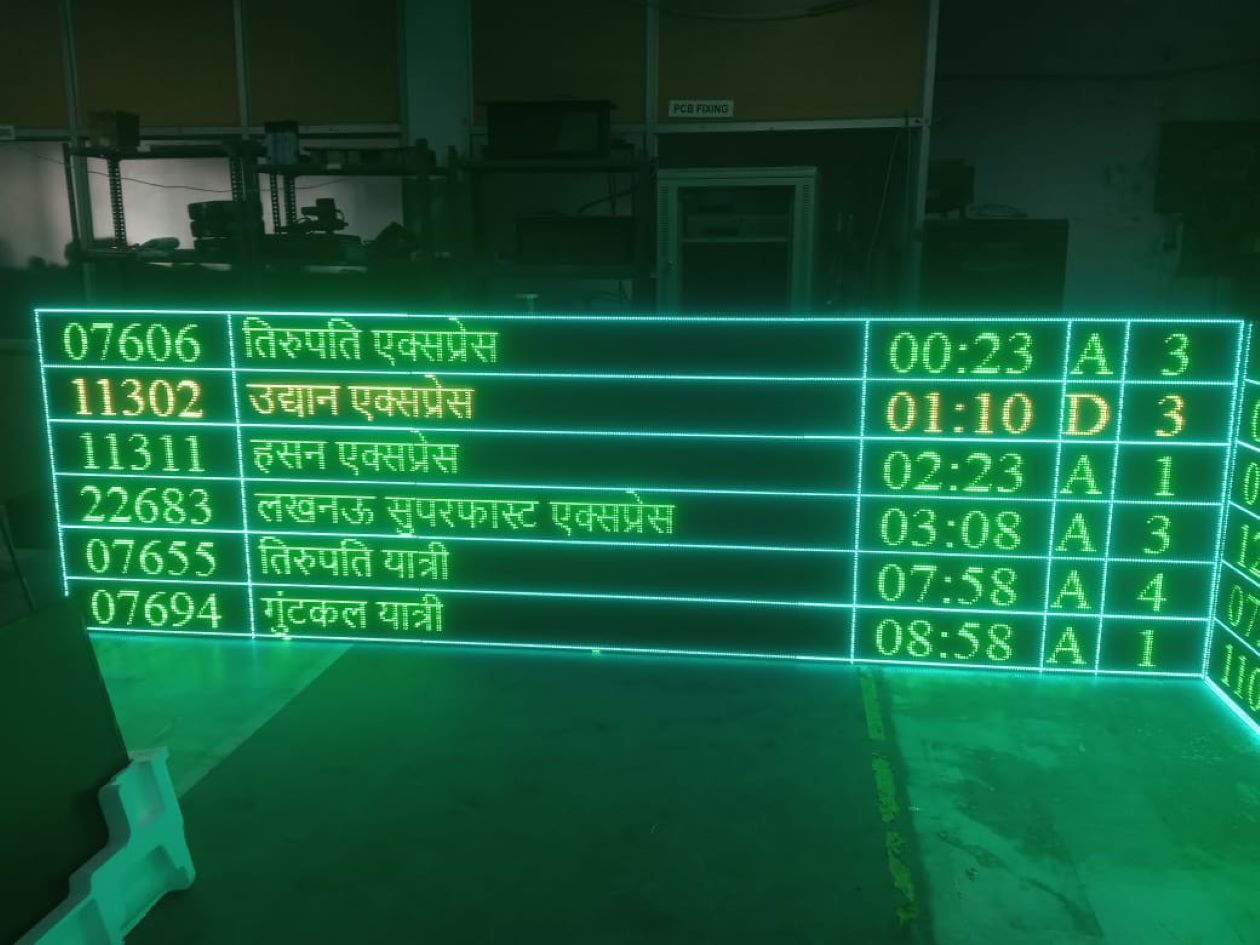

| Coach Guidance | Single Line | Multi Line | 3 Line At a Glance | |
|---|---|---|---|---|
| Case Dimension (LxDxH) | 510x136x230mm | 3420x130x225mm | 3440x125x1200mm | 2450x120x361mm |
| Display Matrix | 16X48 | 16X336 | 16X336 | 8X240 |
| Number of Sides | Double Sided | Double Sided | Single Sided | Single Sided |
| Number of Lines | Single Line | Single Line | 5 Line / As required | 3 Line |
| LED type | Diffused | Diffused | Diffused | Diffused |
| Pixel Size | 5mm Oval | 5mm Oval | 5mm Oval | 5mm Oval |
| Pixel Color | RED/GREEN | RED/GREEN | RED/GREEN | RED/GREEN |
| Center to Center pixel spacing | 10mm | 10mm | 10mm | 10mm |
| Character Size | 160mm | 160mm | 160mm | 160mm |
| LED brightness | 500 mcd/1400 mcd | 500 mcd/1400 mcd | 500 mcd/1400 mcd | 500 mcd/1400 mcd |
| Viewing Angle | Horizontal: 110° Vertical: 40° |
Horizontal: 110° Vertical: 40° |
Horizontal: 110° Vertical: 40° |
Horizontal: 110° Vertical: 40° |
| Viewing Distance | Up to 50 mts | Up to 50 mts | Up to 50 mts | Up to 50 mts |
| Interface | Optically isolated current loop communication |
Optically isolated current loop communication |
Optically isolated current loop communication |
Optically isolated current loop communication |
| Case Material | Powder coated galvanized iron | Powder coated galvanized iron | Powder coated galvanized iron | Powder coated galvanized iron |
| Mounting | Wall mounting / Ceiling suspension |
Wall mounting / Ceiling suspension |
Wall mounting / Ceiling suspension |
Wall mounting / Ceiling suspension |
| Power Supply | 110V/230V AC | 110V/230V AC | 110V/230V AC | 110V/230V AC |
| Power consumption | 58W | 400W | 1KW (5-Line) | 215W |
| Operating Temperature | -10° to +70°C | -10° to +70°C | -10° to +70°C | -10° to +70°C |
